600W 8ohm Line Array Speaker Church Sound Systems for Stage
Quick Detail:
Full range SQ-228P line array speaker, fixed with neodymium drivers LF2x 8" HF1x 1.5" Exit Compression Driver , 600W @8ohm, crossover mode is active and compact plywood cabinet,
high quality sound, strong fiberglass horn with dispersion(HxV) 90°
x 10°, vertical dispersion of the line array speakers can be
adjusted via the flying hardware at the cabinet sides, you can fly
the speaker system for outdoors applications, use it in fixed
installation, or stack them on ground.
Description:
This line array speaker system is designed for applications with
high requirements on SPL, sound quality, throw distance, and
dispersion. And, this system can be used in outdoors applications
like touring concert and living show, and indoors applications like
disco, nightclub, conference and church.
SQ-228P / SQ -18BP is fixed with 1pcs 1.1" HF and 2pcs 8" LF neodymium drivers. The
cabinet design and cabinet dimensions are exactly the same as
original Q1. We just changed the crossover mode to actives one full
range speaker and the impedance of each speaker is 8 ohm.
SQ -18BP When you fly in concert, we suggest you stack 18" subwoofers
SQ-228P on the ground to get better LF sound effect.
System configuration:
.
Let us know your requirements on the system or tell us what kind of
applications they are, we will offer you one solution---send you
one sheet with models,quantity and cost of the
products(loudspeakers, amplifiers, processors, cables, connectors,
flight cases, rack.....) for your project. Various package
available for your projects of different scale.
To avoid damage and scratch during transport,according to
customer’s requirement,we can put the items in flight cases.
Black/Gray/White/Purple finish available for different
applications.
Applications:
Touring, Concert, Living Show, Living Event, night club, disco,
theatre,and fixed installation in other venues

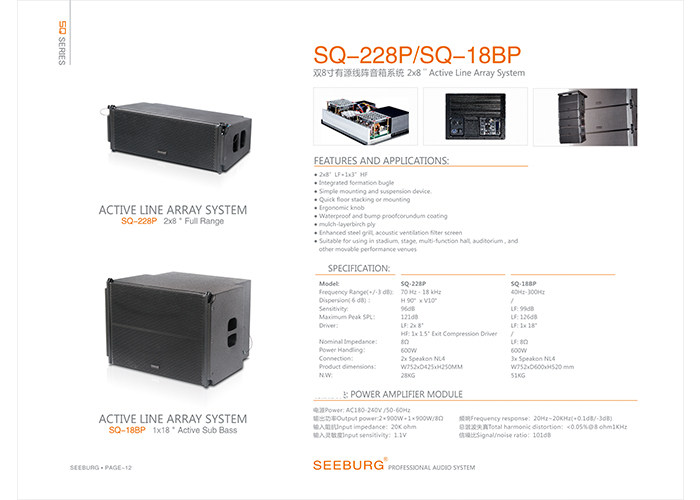

| Model | SQ-228P | SQ-18BP |
| Frequency Range | 70 Hz -18 kHz | 40 Hz-300Hz |
| Dispersion(-6 dB) | H x V 90°x 10° | |
| Sensitivity | 96dB | 99dB |
| Maximum Peak SPL | 121dB | 126dB |
| Driver | LF2x 8" HF1x 1.5" Exit Compression Driver | LF1x 18" |
| Nominal Impedance | 8Ω | 8Ω |
| Power Handling | 600W | 600W |
| Connection | 2x Speakon NL4 | |
| Product dimensions(WxDxH) (mm) | 752X425X250 | 752X600X520 |
| Net Weight | 28KG | 51KG |
